Introduction of Commercial Peanut Butter Production Line
The whole line has undergone a number of improvements and optimizations in the core equipment of the complete set of peanut processing equipment, the rough grinder and the refiner, according to the market demand, and the processing fineness has been further improved. The complete set of equipment production line has a high degree of mechanization, good reliability, and fully enclosed production. It has the characteristics of simple operation, stable operation, low noise, easy maintenance, corrosion resistance, wide application and complete varieties.
This whole processing line can produce natural peanut butter, stable peanut butter, smooth peanut butter, salty peanut butter, sweet peanut butter, crunchy peanut butter and so on. It also can produce the tahini and walnut butter, can be equipped with variety of configuration and capacity according to the different customer requirements.
In a word, this production line has advanced technology, stable quality of products. It is a best choice for food processing plant.
Features of Automatic Peanut Butter Production Line
This production line was designed based on the foreign tech, which consists of feed elevator, continuous roaster, conveyor, cooling machine, decorticating machine, sorting conveyor, grinding machines, pump, storage slot, cooling machine, mixing machine, vacuum deair, etc.
It has advantages of high automation, easy-operating integrated control, stable performance, high product quality, etc.
We can get good undertand for the peanut butter production line by the video. This is Peanut Butter Production Line Video Show for peanut butter business:
Main Equipment of Peanut Butter Processing Line:
1. Peanut Roasting Machine: Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes. Use batch roaster will bake some delicious smells.
2. Peeling Machine: Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted peanut kernel is picked up by manual or mechanical.

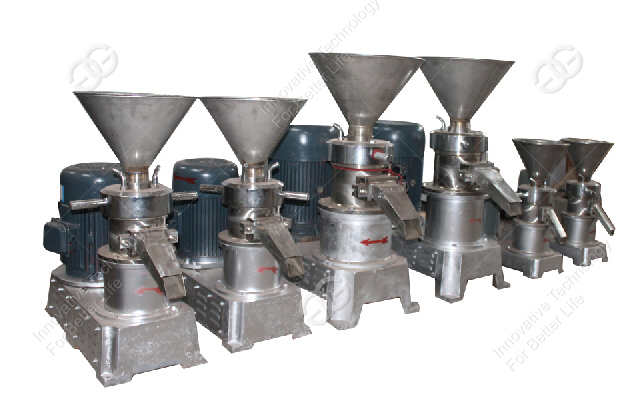

3. Grinding Machine: Using grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.
4. Mixing Tank: Make the peanut butter more homogeneous.
5. Cooling Machine: The peanut butter after ground should be cooled immediately. The temperature should go down 45C.
6. Vacuum Degasser: Take out the air from peanut butter.
7.
Peanut Butter Filling Machine: Packing the peanut butter into bottle, filling quantity can be adjusted.
This is
picture of peanut butter process flow chart. If you can not see this picture vert clearly,due to the screen width problem . You also can download it and see it.
Hoist -- Baking machine -- Conveyor belt -- Cooling zone -- Half Cut machine -- Picking belt -- Hoist -- Storage Hopper -- Colloid Mill -- Cache Can -- Colloid Mill -- Cache Can -- Cooler -- Vacuum Degassing Tank -- Canning machine
Advantages of this peanut butter processing line:
We are the manufacturer of peanut butter machinery, this peanut butter production line includes the peanut roaster, peanut dry peeling machine,automatic feeding machine, grinding machine,vacuum degassing machine, cooling machine and so on.
The character is high automation, good reliability, full enclosed production, no pollution, the finished peanut butter has the export standard.
The detailed technology and capacity can be customize according to the customer requirements. If you need the peanut butter machine, contact us freely. Email:wendy@machinehall.com.
